The Ice-Crystal Theory of rain formation, also known as the Bergeron-Findeisen process, is a fundamental explanation for precipitation in cold and mixed-phase clouds. This theory is particularly significant in mid-latitude and polar regions, where temperatures within clouds often fall below freezing. It describes how the interaction between ice crystals and supercooled water droplets leads to the formation of precipitation. Below is a comprehensive explanation of this mechanism, elaborating on the processes and principles involved.
Background: The Nature of Clouds
Clouds form when moist air rises, cools, and condenses. Depending on the temperature, clouds can contain:
Liquid droplets: Found in warmer regions of clouds, above freezing temperatures.
Supercooled droplets: Liquid water that remains unfrozen at temperatures below 0°C due to the absence of freezing nuclei.
Ice crystals: Solid particles that form directly from water vapor or freezing of supercooled droplets.
Mixed-phase clouds, which are critical to the Ice-Crystal Theory, contain both ice crystals and supercooled water droplets.
Key Principles of the Ice-Crystal Theory
The Ice-Crystal Theory operates on three fundamental principles:
Saturation Vapor Pressure Difference:

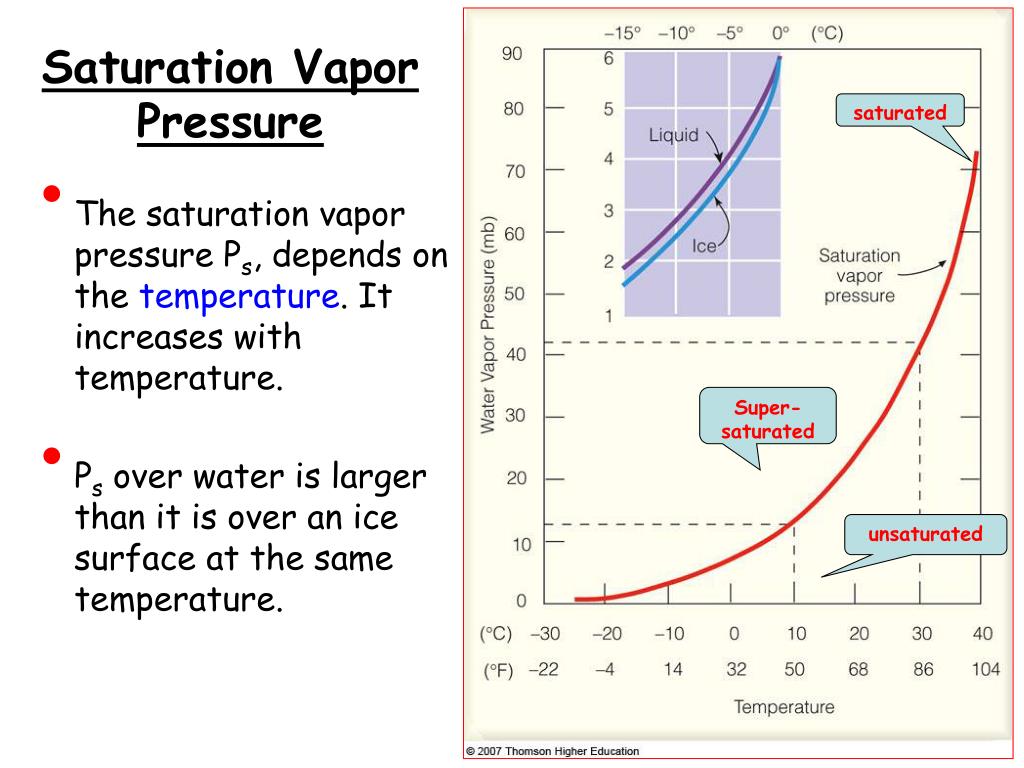

The saturation vapor pressure over ice is lower than that over liquid water at the same temperature. This means that ice crystals can attract water vapor more readily than liquid droplets can.
This difference drives the movement of water vapor from the supercooled droplets to the ice crystals, enabling the latter to grow.
Water Vapor Diffusion:
Water vapor migrates from areas of higher vapor pressure (around supercooled droplets) to areas of lower vapor pressure (around ice crystals).
This diffusion process leads to the evaporation of supercooled droplets and the deposition of water vapor onto the surface of ice crystals.
Growth of Ice Crystals:
As ice crystals grow, they become heavier and eventually fall due to gravity. During their descent, these crystals can further grow and evolve through interactions with other cloud particles.
The Ice-Crystal Theory unfolds in the following stages:
1. Initial Formation of Ice Crystals
In a cold cloud (temperature below 0°C), water vapor condenses and freezes on certain particles called ice nuclei. These nuclei, such as dust, salt, or biological particles, provide a surface for ice crystals to form.
Simultaneously, the majority of water droplets remain in a supercooled liquid state because ice nuclei are relatively scarce.
2. Coexistence of Ice Crystals and Supercooled Droplets
Once ice crystals form, they coexist with a large population of supercooled droplets.
This coexistence is essential, as the saturation vapor pressure difference between ice and liquid water initiates the redistribution of water vapor.

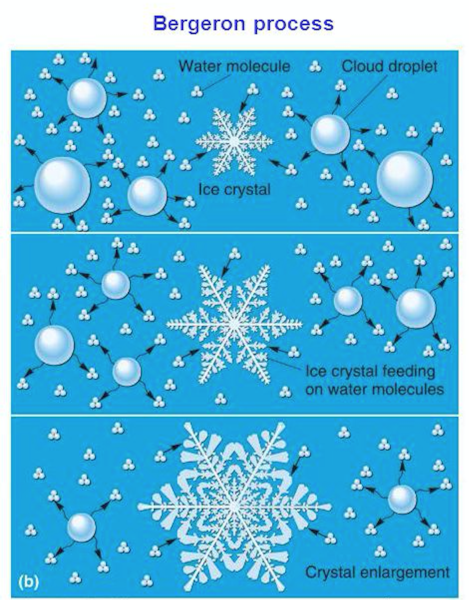

3. Vapor Redistribution
Due to the lower saturation vapor pressure over ice, water vapor from the surrounding air preferentially condenses onto the ice crystals.
To maintain equilibrium, the supercooled droplets evaporate to replenish the water vapor in the air. This process shrinks the supercooled droplets while causing the ice crystals to grow.
4. Growth of Ice Crystals
The ice crystals grow via deposition—the direct transformation of water vapor into solid ice on the crystal surface.
The shape and size of the crystals depend on the temperature and humidity. For instance:
At colder temperatures, ice crystals may form intricate shapes like dendrites.
In slightly warmer conditions, simpler shapes such as plates or needles may develop.
5. Formation of Precipitation
As ice crystals grow larger and heavier, they begin to fall through the cloud under the influence of gravity.
During their descent, the following processes may occur:
Aggregation: Ice crystals collide and stick together, forming larger snowflakes.
Riming: Supercooled droplets freeze upon contact with the falling ice crystals, adding mass and altering their structure.
If the air below the cloud is warm, the ice crystals or snowflakes melt into raindrops before reaching the ground. If the air remains cold, they fall as snow or sleet.
Additional Processes Influencing the Ice-Crystal Theory
While the Ice-Crystal Theory focuses on the role of vapor deposition, other microphysical processes often interact with it:
Secondary Ice Production:
When falling ice crystals shatter or fragment, they can create additional ice particles, amplifying the process.
This phenomenon is significant in storms and contributes to rapid ice crystal formation.
Dynamic Effects:
Updrafts in clouds can lift falling ice crystals back into the cloud, allowing them to interact with additional droplets and grow further.
Turbulence:
Turbulence within the cloud enhances the interaction between ice crystals, droplets, and vapor, speeding up the precipitation process.
Applications and Importance
The Ice-Crystal Theory is vital for understanding precipitation in various climatic conditions:
Mid-Latitude Regions:
Most precipitation in mid-latitudes originates from mixed-phase clouds. Even rain begins as ice crystals before melting during descent.
Cold and Polar Regions:
In polar climates, snow formation is predominantly governed by this mechanism.
Weather Prediction:
Modern meteorological models incorporate the Ice-Crystal Theory to simulate cloud microphysics and forecast precipitation.
Limitations and Challenges
Despite its importance, the Ice-Crystal Theory has limitations:
Idealized Assumptions:
The theory assumes a simple environment with uniform conditions, whereas real-world clouds are highly complex, with variations in temperature, humidity, and turbulence.
Dependence on Ice Nuclei:
Ice nuclei are not uniformly distributed in the atmosphere, and their scarcity can limit the initiation of the process.
Exclusion of Warm Clouds:
The theory does not apply to warm clouds, where precipitation forms through the collision-coalescence process.
Uncertainty in Secondary Processes:
Secondary ice production, riming, and aggregation are less understood and harder to quantify in models.
Challenges in Modeling:
Accurately simulating the Ice-Crystal Theory in weather prediction models is difficult due to the complexity of cloud microphysics.
Conclusion
The Ice-Crystal Theory is a cornerstone of meteorology, offering a detailed explanation of how precipitation forms in mixed-phase clouds. By leveraging principles of vapor pressure differences and phase transitions, it highlights the intricate processes leading to the growth of ice crystals and the eventual formation of rain, snow, or sleet. While it has limitations, particularly in addressing tropical and warm-cloud precipitation, the theory remains an essential framework for understanding and predicting weather phenomena in colder regions. Continued research and advancements in cloud physics will likely refine this theory, integrating it with other mechanisms to provide a more comprehensive view of precipitation formation.
